Center of Gravity


The center of gravity of any object is a special point.

  1. If the object is in free fall, the CG is the point around which it will rotate. The CG will travel in the same path that a point particle (e.g. a small ball) would have traveled.
  2. The CG is the balance point: if supported from below by a single point under the CG, the object will be precariously balanced. If supported by a broad area (the "base of support"), the object will be stable as long as the CG is over the base of support.
  3. If supported from above by a single point, the CG will always hang directly under the suspension point.
  4. The work needed to lift a 3D object is given by Ug=mgh, where h is the height that the CG rises.

Examples

1. Standing on tiptoes, touching toes

2. Hummingbird toy

3. What does "top-heavy" mean?

4. Standing up

5. Pole Vaulting

6. Why wheels work



Activities & Practice
to do as you read

Watch these videos:

1. Liebherr excavator climbing a tower. This is somewhat lengthy (9 minutes) and slow. Feel free to skip forward.

2. Skills with a 15-ton Loader.

3. Extreme Maneuver: Unloading the Excavator

4. Epic Crane Fail

Additional Activities & Practice

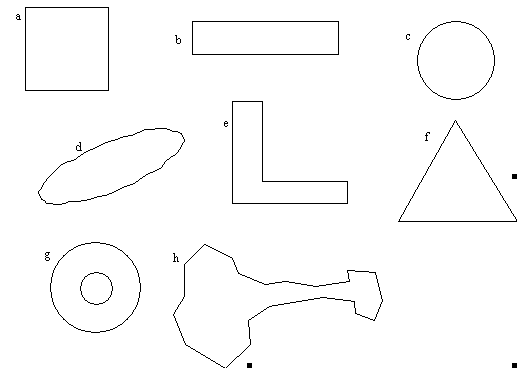

1. Draw a dot where you think the CG is for each of these flat objects.

2. Find a map of any state, country or continent and print or trace it onto a piece of paper. Glue the map to a piece of thin cardboard and cut out the shape. Make it fairly big, at least 15 cm across. Find the CG, and tell me what city or town is closest.
